The CSB4008
EF-5 Rated Tornado Shelter.
A transportable 8' wide × 40' long storm shelter, engineered to keep working when the weather doesn't. Scroll down to take a look around.
Scroll to explorePurpose-built for the worst day.
The CSB4008 is a self-contained 8 × 40 shelter on a mobile base — delivered and installed, ready to protect a crew without heavy concrete site work or a permanent foundation.
Get inside fast, get out safe.
The largest ready-to-ship rental fleet in the country. Multi-unit installations allow quick access for anyone in large campus work zones, manufacturing plants, or field operations.
Step in. It's built for people.
It's not just solid plate steel construction — an industrial-grade, structurally reinforced steel frame truss system ensures safety no matter what nature throws at it.
Stays lit when the grid goes dark.
Roof-mounted solar panels keep interior lighting batteries charged and ready — essential systems run independently to ensure off-grid lighting in an emergency.
Extreme protection. Fully welded solid steel construction.
Designed and engineered with a fully-welded, solid plate steel exterior shell. EF-5 rated to 250 MPH wind speed. Certified to meet or exceed ICC 500 and FEMA P-361 standards.
Ready to deploy at any location.
Deployable to any level installation site. Protect your factory, school, remote job site, parks, manufacturing plant, and business with US Tornado Shelter.
Near-absolute protection, by the numbers.
Engineered, built, and independently third-party reviewed to recognized life-safety standards for violent tornadoes — verified against a published standard, not asserted.
A no-nonsense premium shelter.
Engineered to the standard, not to a price point. This is not a converted shipping container or a light-gauge storm box.
Engineered & verified
Designed to FEMA P-361 and ICC-500 criteria for EF-5 / 250 MPH events, with engineering independently third-party reviewed.
Welded steel plate
A 1/4-inch welded steel envelope in structural ASTM A36 / A572 — built to resist wind-borne debris, the true killer in a violent tornado.
Capacity does the math
320 sq ft yields 64 FEMA-design / 106 maximum occupants, served by two code-compliant doors and engineered ventilation — no guesswork.
Deploy fast, relocate
An integrated transport base ships, places, and protects without a poured foundation — ideal for rentals, field ops, and phased build-outs. Nationwide.
One platform, many missions
EF-5 shelter, large-hail and high-wind refuge, and a hardened multi-use field facility — all in a single unit.
Classification, dimensions & capacity.
01 Classification & Compliance
| Model | CSB4008 — CSB Series (base-mounted / rapid-deploy) |
|---|---|
| Type | Above-ground commercial tornado shelter / community safe room |
| Design wind speed | EF-5 / 250 MPH |
| Governing standards | FEMA P-361, FEMA P-320, ICC-500, IBC |
| Protection level | Near-Absolute Protection (NSSA criteria) |
| Debris impact tested | Withstands a 100 MPH missile impact |
| Engineering review | Independent third-party reviewed |
| Product brand | TornadoLock™ Tornado-Safe Storm Shelters |
| ADA full-size access doors | Standard |
| Manufactured | Wilkesboro, North Carolina, USA |
02 Dimensions & Capacity
| Nominal footprint | 8′ W × 40′ L × 8′ H |
|---|---|
| Extreme-load structural steel truss system | Standard |
| Protected floor area | 320 sq ft |
| FEMA design occupancy | 64 persons (5 sq ft / person) |
| Maximum capacity | 106 persons (3 sq ft / person) |
| Storm-safe entry / egress doors | 2 |
| High-security 1″ stainless sliding locks | 6 — three per door, interior-operated |
| Seating | Integrated bench seating — standard |
| High-grit textured flooring | Throughout |
| Interior lighting | Integrated solar with battery backup |
| Air ventilation | Steel-plate-shielded vents |
| Electrical grounding rod system | Standard |
| Emergency toilet & privacy screen | Optional |
| Anchorage | Project-specific, engineer-certified |
Occupancy is calculated by the FEMA / ICC-500 method — protected area divided by 5 sq ft per person for design occupancy and 3 sq ft per person for maximum capacity. Usable-area deductions for fixtures and accessibility are applied per the site's certified plan.
Structure, doors & interior systems.
Structure & materials
- 1/4-inch welded steel plate — fully welded wall, roof, and floor forming a continuous hardened shell.
- Structural-grade steel — ASTM A36 and A572, selected for strength, weldability, and impact toughness.
- Solid-weld construction with an integrated interior structural steel truss system, engineered for extreme-load capacity to ICC-500 / FEMA P-361 at 250 MPH.
- The integral framing is sized to preserve usable interior floor area.
Door & access system
- Two code-compliant entry/egress doors, sized to ICC-500 egress for the occupant load.
- Six 1″ stainless sliding locks (three per door), interior-operated — no exterior lock; it can't be locked from outside.
- Rated to remain operable after a design event so occupants can self-evacuate.
- Standardized TornadoLock™ "STORM SHELTER / ENTER HERE" graphics, arrows, and QR wayfinding.
Ventilation, lighting & interior
- Natural ventilation to ICC-500 net-free-area, using shielded vents that resist debris and wind-driven rain.
- Solar-charged LED lighting with battery backup for illumination through grid loss.
- Integrated bench seating for comfort during shelter-in-place.
- ADA-compliant full-size access doors standard, with accessible provisions per ICC-500 §502.

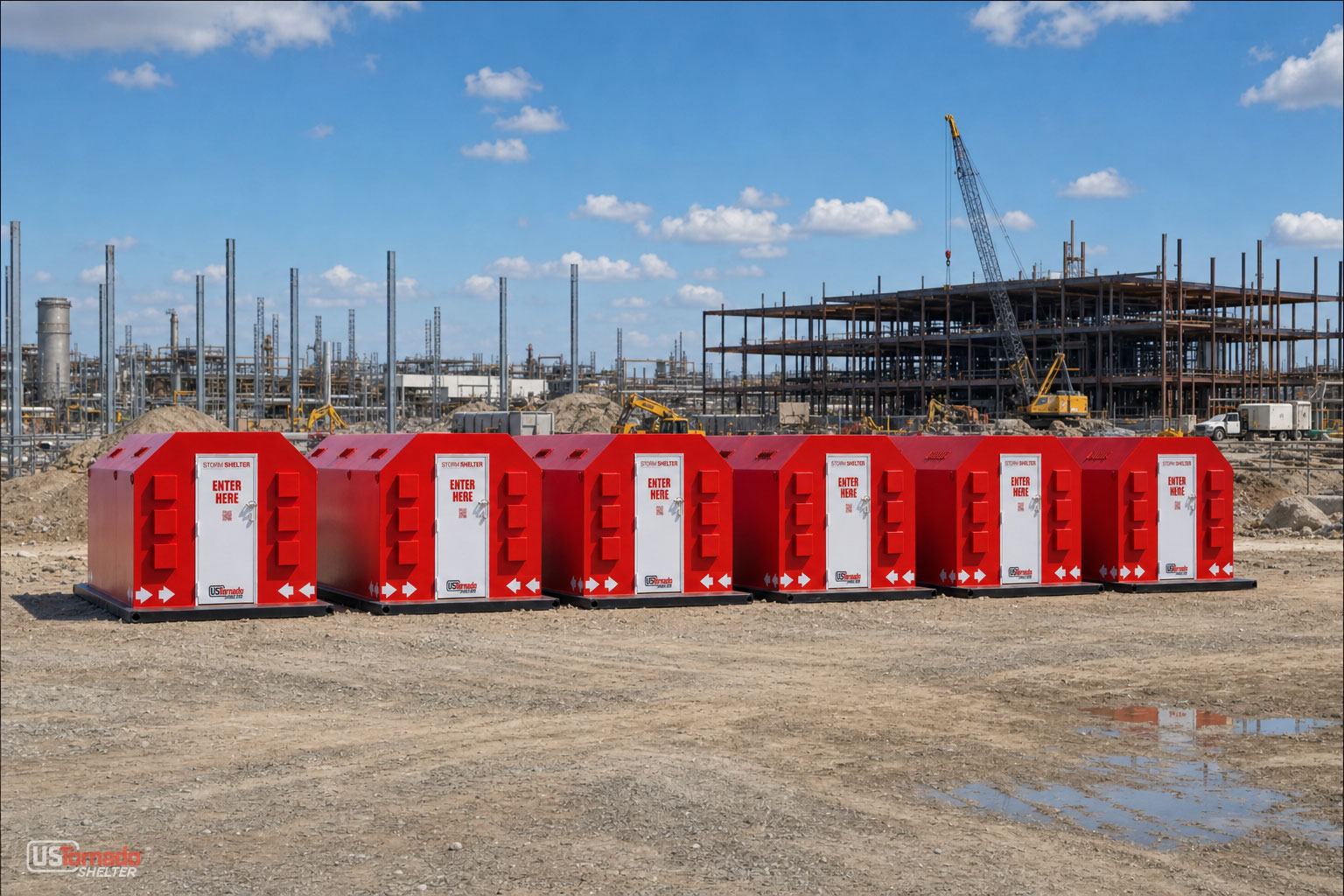

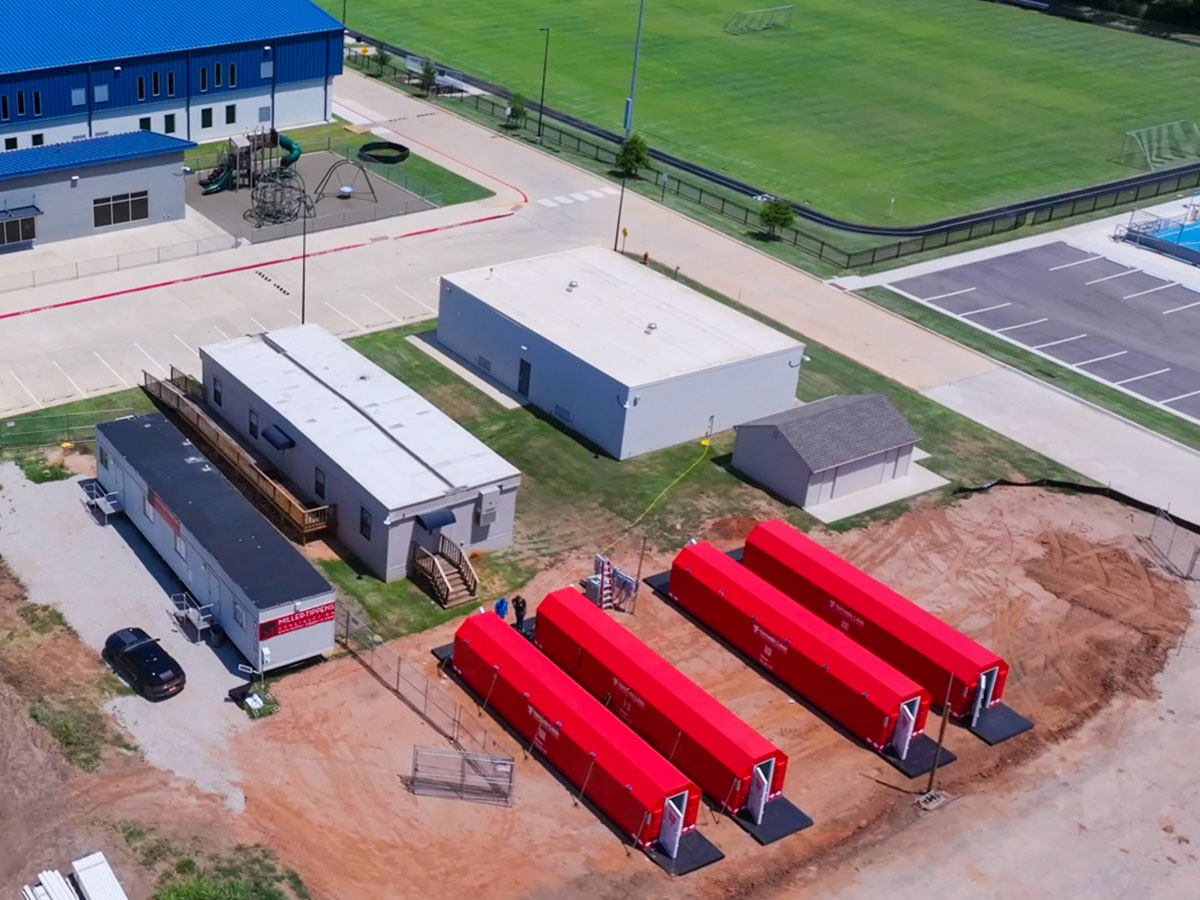

See the CSB4008 in the real world.
Real photographs of the CSB4008 TornadoLock™ storm shelter — exterior, marked entry, welded-steel interior, rooftop solar, and on-site deployment. Select any photo to enlarge.
Design your storm shelter to your needs…
Use the free Tornado Shelter Planner to size occupancy, choose a model, and build your emergency plan — or talk it through with a US Tornado Shelter specialist.
A shelter that earns its keep every day.
The same sealed steel envelope that stops 250 MPH debris keeps out rain, hail, heat, and cold — so the CSB4008 doubles as a hardened field asset between storms.
Optional electrical service
Add lighting, outlets, and equipment power to turn the unit into a working field station.
Optional climate control
Heating/cooling provisions create a warm-up / cool-down station for crews in extreme heat or cold.
Always on-site, always ready
Because it's already the crew's break room, it's staffed and occupied the moment the sirens sound — zero travel time to shelter.
Permanent or rental. Nationwide.
Permanent or rental
- Available as a CSB Series rental for temporary and field deployments.
- Or specified as the permanent-install CS4008, anchored per ACI 318-19 Ch. 17.
Nationwide delivery
- Shipped and deployed in any U.S. state from North Carolina manufacturing.
- Engineered lift points and documented rigging for safe crane / forklift handling.
Scalable capacity
- Add CSB4008 units (or mix CSB sizes) to phase shelter capacity as headcount grows.
- A modular alternative to a single, over-built site-constructed safe room.
Verified against published standards.
Ready to secure your people?
Talk to US Tornado Shelter about the CSB4008 Tornado Lock Storm Shelter — protect your workforce for just dollars a day.
