The TornadoLock™ CSB1010 is a transportable 10′ × 10′ solid-steel safe room available for rent, its extra width giving 100 square feet of protection for small crews, farms, and agricultural operations. It deploys on an integrated ballast base anchored with helix augers or concrete piers, so there's no slab to pour and nothing left behind when it moves. Sheltering 19 people at FEMA occupancy and up to 33 at maximum, it's entered through a single ICC 500 certified door. Certified to FEMA P-361 and ICC 500 and rated for EF-5 winds up to 250 MPH.
100 sq ft of welded steel protection, engineered to FEMA P-361 and ICC-500 criteria for EF-5 events at 250 MPH u2014 the same shell we build for permanent installs, mounted on an integrated transport base for rental deployment. The compact square footprint is built for sites where even a 20-foot unit won't fit u2014 a tight yard, a single room addition, or a corner allocation where floor space is already spoken for.
Entry is ICC-500 code-compliant and debris-impact rated, with three 1-inch stainless sliding locks operated entirely from inside. The shelter cannot be locked from the outside, and it is rated to remain operable after impact so nobody is sealed in waiting on rescue.
Occupancy runs off the FEMA and ICC-500 formula: 5 sq ft per person for design, 3 sq ft per person at maximum. Bench seating is integrated into the shell rather than added after, high-grit flooring handles wet boots, and ADA full-size access is standard per ICC-500. A rental unit arrives with the same interior specification as a purchased one.
Roof-mounted solar and a backup battery keep the interior lit through a grid outage, so the CSB1010 needs no electrical tie-in to your site at all u2014 one less trade to schedule on a rental. Steel-plate-shielded vents meet ICC-500 net-free-area for natural ventilation while resisting debris and wind-driven rain.
1/4-inch structural steel plate in ASTM A36 and A572, solid-welded across wall, roof, and floor, with an interior truss system engineered for extreme load at 250 MPH. This is not a converted shipping container or a light-gauge storm box u2014 the engineering is independently third-party reviewed against published standards, and a rental unit is built to that same drawing.
The CSB1010 ships on an integrated transport base, so there is no poured foundation, no cure time, and no concrete subcontractor between you and a protected crew. Set it on prepared grade and level it u2014 the smallest, fastest-to-deploy unit in the CS line, sized for a single high-density workspace rather than a full crew.
Engineered, built, and independently third-party reviewed to recognized life-safety standards for violent tornadoes.
| Model | CSB1010 — CSB Series (base-mounted / rapid-deploy) |
|---|---|
| Type | Above-ground commercial tornado shelter / community safe room |
| Design wind speed | EF-5 / 250 MPH |
| Governing standards | FEMA P-361, FEMA P-320, ICC-500, IBC |
| Protection level | Near-Absolute Protection (NSSA criteria) |
| Debris impact tested | Withstands a 100 MPH missile impact |
| Engineering review | Independent third-party reviewed |
| Product brand | TornadoLock™ Tornado-Safe Storm Shelters |
| ADA full-size access doors | Standard |
| Manufactured | Wilkesboro, North Carolina, USA |
| Nominal footprint | 10' W x 10' L × 8′ H |
|---|---|
| Extreme-load structural steel truss system | Standard |
| Protected floor area | 100 sq ft |
| FEMA design occupancy | 20 persons (5 sq ft / person) |
| Maximum capacity | 33 persons (3 sq ft / person) |
| Storm-safe entry / egress doors | 1 |
| High-security 1″ stainless sliding locks | 3 — three per door, interior-operated |
| Seating | Integrated bench seating — standard |
| High-grit textured flooring | Throughout |
| Interior lighting | Integrated solar with battery backup |
| Air ventilation | Steel-plate-shielded vents |
| Electrical grounding rod system | Standard |
| Emergency toilet & privacy screen | Optional |
| Anchorage | Project-specific, engineer-certified |
Occupancy is calculated by the FEMA / ICC-500 method — protected area divided by 5 sq ft per person for design occupancy and 3 sq ft per person for maximum capacity. Usable-area deductions for fixtures and accessibility are applied per the site’s certified plan.
Engineered to the standard, not to a price point. This is not a converted shipping container or a light-gauge storm box.
Designed to FEMA P-361 and ICC-500 criteria for EF-5 / 250 MPH events, with engineering independently third-party reviewed.
A ¼" welded steel envelope in structural ASTM A36 / A572 — built to resist wind-borne debris, the true killer in a violent tornado.
100 sq ft yields 20 FEMA-design / 33 maximum occupants, served by 1 code-compliant doors and engineered ventilation — no guesswork.
An integrated transport base ships, places, and protects without a poured foundation — ideal for rentals, field ops, and phased build-outs. Nationwide.
EF-5 shelter, large-hail and high-wind refuge, and a hardened multi-use field facility — all in a single unit.
Use the free Tornado Shelter Planner to size occupancy, choose a model, and build your emergency plan — or talk it through with a US Tornado Shelter specialist.
The same sealed steel envelope that stops 250 MPH debris keeps out rain, hail, heat, and cold — so the CSB1010 doubles as a hardened field asset between storms.
Add lighting, outlets, and equipment power to turn the unit into a working field station.
Heating/cooling provisions create a warm-up / cool-down station for crews in extreme heat or cold.
Because it’s already the crew’s break room, it’s staffed and occupied the moment the sirens sound — zero travel time to shelter.
Scroll through the engineered features that protect your people — from the welded steel envelope to the anchorage that keeps the CSB1010 planted through an EF-5 event.
The CSB1010 is a 10' x 10' rental shelter engineered to FEMA P-361 and ICC-500 criteria for EF-5 events at 250 MPH. 100 sq ft of welded steel protection on an integrated transport base, in the smallest footprint in the CS line u2014 built for sites where even a 20-foot unit will not fit.
US Tornado Shelter units are engineered to ICC-500 and FEMA P-361 air circulation and ventilation requirements for each shelter's occupant load. Vents are steel-plate shielded to resist debris and wind-driven rain while maintaining required net free area.
The CSB1010 ships on its own transport base, so there is no poured foundation and no cure time on your site. The unit is set on prepared grade and leveled, which is what makes a rental deployment possible in the first place.
These panels charge the emergency battery backups for our interior solar lighting, so the shelter needs no electrical tie-in to your site at all.
Our heavy steel storm rated doors have been impact tested and approved to meet EF-5 tornado rated protection, and are rated to remain operable after impact.
Emergency lit exit signage is standard at each access door on our tornado shelters.
Each door is heavy gauge 1/4-inch plate steel construction with added structural reinforced framing across the door for extra security and impact safety.
Each access door has three 1-inch stainless steel sliding security locks, all operated from inside. These locks ensure no debris impact will shudder the door open in an extreme tornado event.
Integrated bench seating is standard in all our shelters, running along both side walls as a comfort feature when occupied. A rental unit is built to the same interior specification as a purchased one.
The same high-grit surface is used on the interior floor as on the exterior transport base foundation. This helps occupants keep traction when entering and repositioning inside the unit if shoes or surface become wet.
Beyond the 1/4-inch solid plate steel shell, our shelters use premium steel reinforced structural trusses throughout, creating extreme load bearing capacity for impact, debris, and extreme conditions.
On both sidewalls you'll find handrails helping standing occupants find comfortable positions and support without coming into contact with the external shell wall.
Our shelters come standard with battery backup solar lighting for off-grid emergency use, requiring no electrical tie-in to the site.
Contact us below to protect your team.

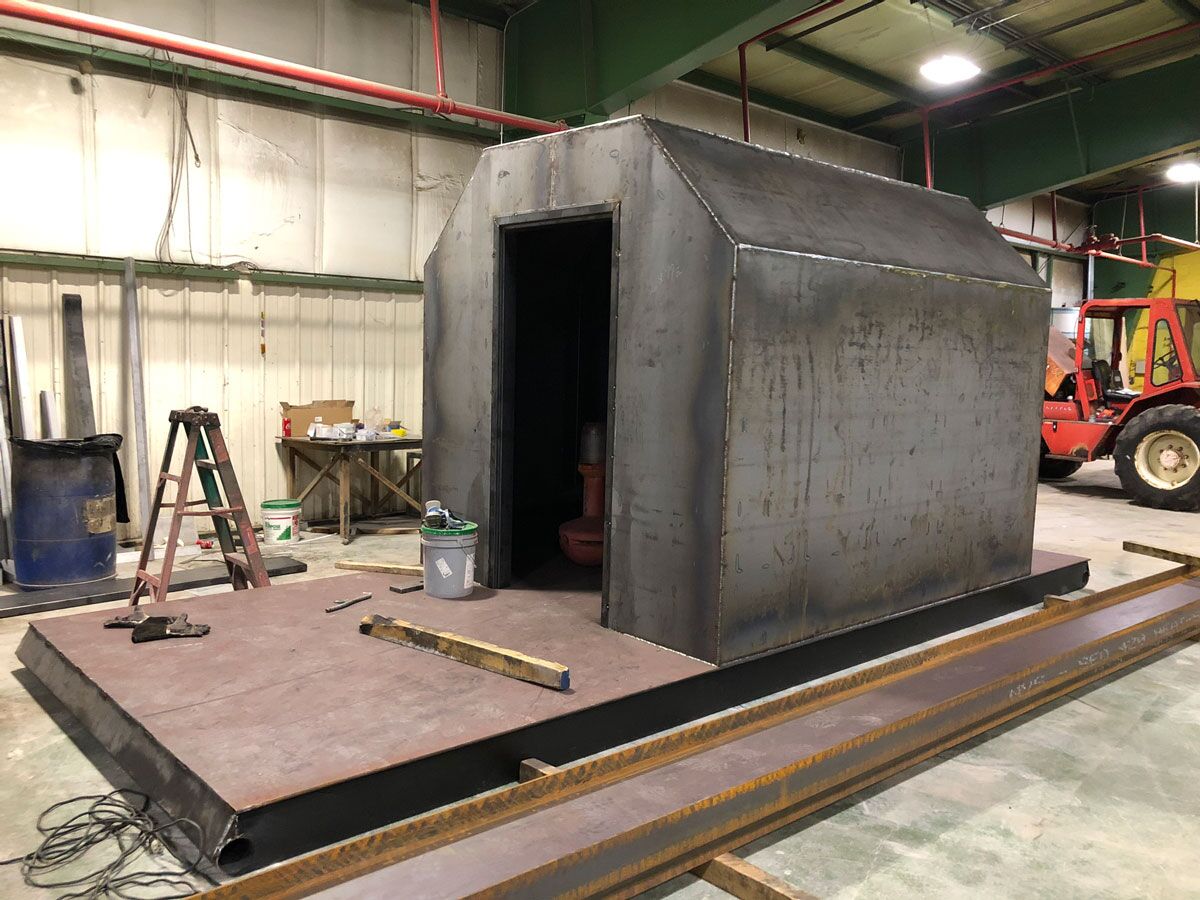

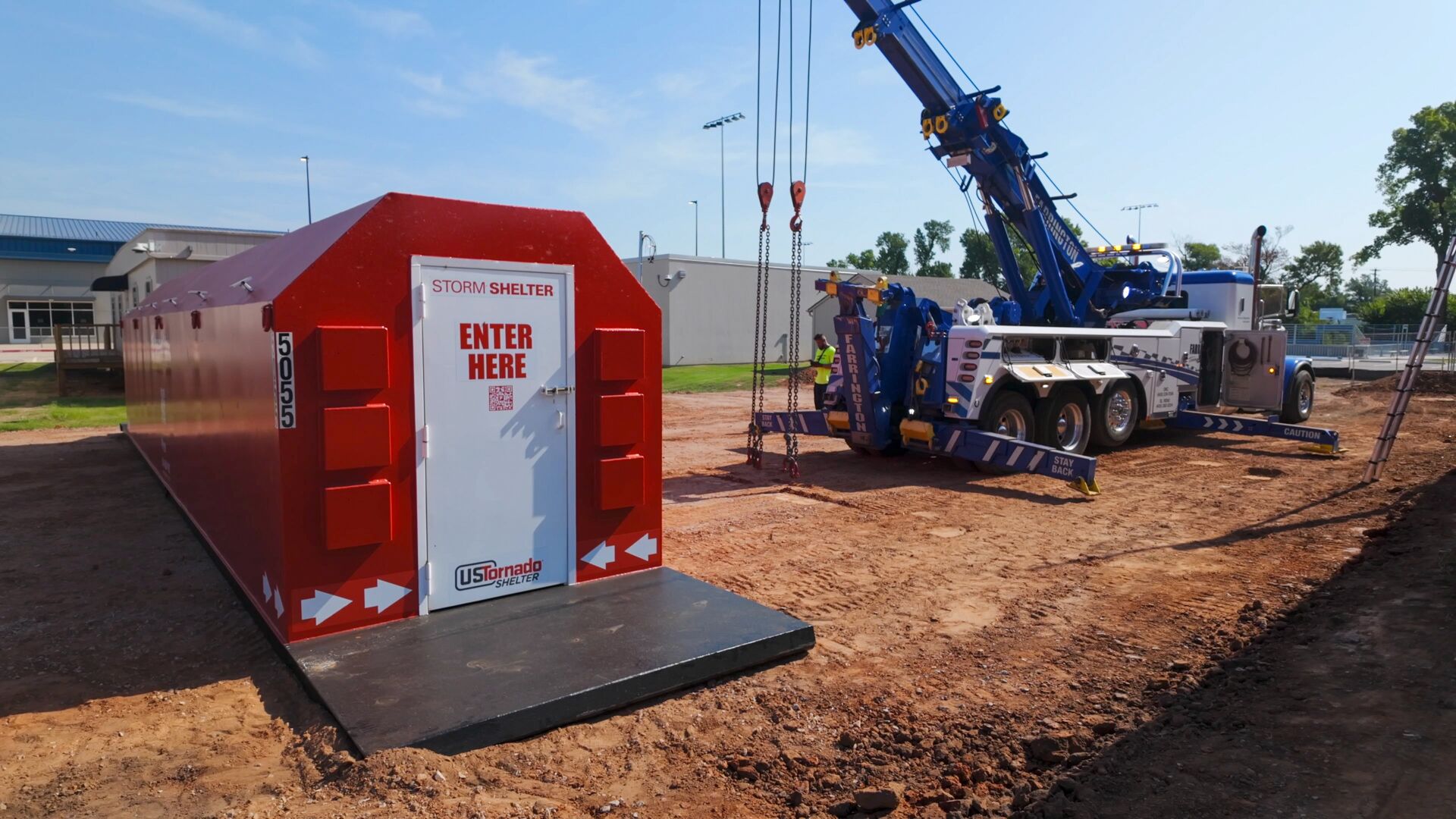

Real photographs of the shelter — exterior, entry, interior, and on-site deployment.
